DiscoverSim™ Case Studies

Case Study 5 – Robust New Product Design

Introduction: Optimizing Shutoff Valve Spring Force

This is an example of DiscoverSim stochastic optimization for robust new product design, adapted from:

Sleeper, Andrew (2006), Design for Six Sigma Statistics: 59 Tools for Diagnosing and Solving Problems in DFSS Initiatives, NY, McGraw-Hill, pp. 782-789.

Sleeper, Andrew, “Accelerating Product Development with Simulation and Stochastic Optimization”

This example is used with permission of the author.

The figure below is a simplified cross-sectional view of a solenoid-operated gas shutoff valve:

The arrows at the bottom of the figure indicate the direction of gas flow. A solenoid holds the plate (shaded) open when energized. When the solenoid is not energized, the spring pushes the plate down to shut off gas flow. If the spring force is too high, the valve will not open or stay open. If the spring force is too low, the valve can be opened by the inlet gas pressure.

The method of specifying and testing the spring is shown below:

The spring force requirement is 22 +/- 2 Newtons.

The spring force equation, or the Y = f(X) transfer function, is calculated as follows:

Spring Length, L = -X1 + X2 - X3 + X4

Spring Rate, R = (X8 - X7)/X6

Spring Force, Y = X7 + R * (X5 - L)

The shut off valve features, tolerances and nominal settings are given as:

In this study we will use DiscoverSim to help us answer the following questions:

• What is the predicted process capability with these feature tolerances and nominal settings?


• What are the key X variables that influence spring force Y? Can we improve the process capability by tightening the tolerance of the important variables? Can this be done economically?


• Can we adjust the nominal settings of X to reduce the transmitted variation in Y, thereby making the Spring Force robust to the variation due to feature tolerances?

Summary of DiscoverSim Features Demonstrated in Case Study 5:

Create Input Distributions (Continuous Uniform) DiscoverSim Copy/Paste Cell Run Simulation with Sensitivity Chart of Correlation Coefficients Create Continuous Input Controls Specify Constraints Run Optimization

Spring Force Simulation and Optimization with DiscoverSim

1. Open the workbook Shutoff Valve Spring Force. DiscoverSim Input Distributions will simulate the variability in feature tolerance. We will use the Uniform Distribution, since we do not have historical data to estimate a best fit distribution, and will assume an equal probability for a feature to have a minimum tolerance or maximum tolerance value. Input Distributions with Uniform Distributions (Random) will be specified in cells I15 to I22. Nominal (midpoint) values are specified in cells H15 to H22 with initial values determined by engineering best estimate. Input Controls will be applied here for optimization. The sum of Nominal + Random are used to calculate the X1 to X8 variables and given in cells J15 to J22. The output, Spring Rate, will be specified at cell J27 using the formula given in the introduction.




2. The Input Distribution parameters are given in the following table:




3. Click on cell I15 to specify the Input Distribution for X1, Lip Height. Select DiscoverSim > Input Distribution:




4. Select Uniform Distribution.


5. Click input Name cell reference and specify cell L15 containing the input name “X1_Dist”. After specifying a cell reference, the dropdown symbol changes from to .


6. Click the Minimum parameter cell reference and specify cell M15 containing the minimum parameter value = -0.1.


7. Click the Maximum parameter cell reference and specify cell N15 containing the maximum parameter value = 0.1.


8. Click Update Chart to view the Uniform Distribution as shown:




9. Click OK. Hover the cursor on cell I15 to view the DiscoverSim graphical comment showing the distribution and parameter values:




10. Click on cell I15. Click the DiscoverSim Copy Cell menu button (Do not use Excel’s Copy – it will not work!).


11. Select cells I16:I22. Click the DiscoverSim Paste Cell menu button (Do not use Excel’s Paste – it will not work!).


12. Review the input comments in cells I16 to I22:

    Cell I16



    Cell I17



    Cell I18



    Cell I19



    Cell I20



    Cell I21



    Cell I22




13. Click on cell J27.

    Note: The cell contains the Excel formula for Spring Force:
    =_X7 + _R * (_X5 - _L). Excel range names _X7, _R, _X5 and _L are used rather than cell addresses to simplify interpretation.


14. Select DiscoverSim > Output Response:




15. Enter the output Name as “Spring_Force”. Enter the Lower Specification Limit (LSL) as 20, Target as 22, and Upper Specification Limit (USL) as 24.



    Click OK.


16. Hover the cursor on cell J27 to view the DiscoverSim Output information.




17. Select DiscoverSim > Run Simulation




18. Click Report Options/Sensitivity Analysis. Check Sensitivity Charts and Correlation Coefficients. Select Seed Value and enter “12” as shown, in order to replicate the simulation results given below:



    Click Run.

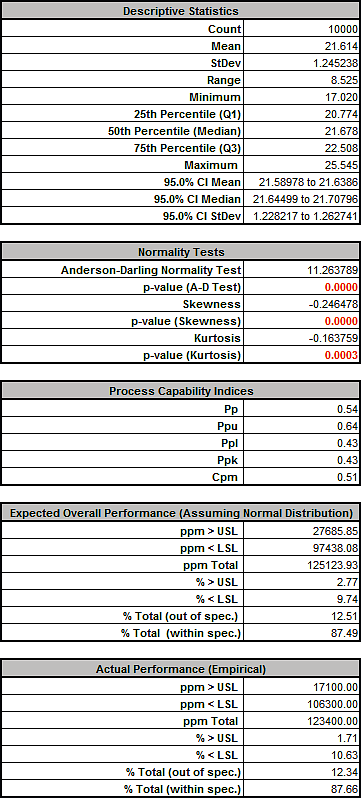

19. The DiscoverSim Output Report shows a histogram, descriptive statistics and process capability indices:





    From the histogram and capability report we see that the Spring Force is not capable of meeting the specification requirements. The process mean is off target and the variation due to feature tolerance is unacceptably large. Approximately 12.3% of the shutoff valves would fail, so we must improve this design to center the mean and reduce the variation.


20. Click on the Sensitivity Correlations sheet:



    X5 (Initial Compression) is the dominant input factor affecting Spring Force, followed by X4 (Spring Gap Depth). The tolerance on Initial Compression is +/- 0.5. Discussing this with our supplier it turns out that the tolerance for this spring feature can be tightened to +/- 0.25 without increasing the cost.

    This Sensitivity Chart uses the Spearman Rank Correlation, and the results may be positive or negative. If you wish to view R-Squared percent contribution to variation, rerun the simulation with Sensitivity Regression Analysis and Sensitivity Charts, Regression Coefficients checked.


21. Select Sheet1, click on cell M19. Change the Uniform Minimum value from -0.5 to -0.25. Click on cell N19. Change the Uniform Maximum value from 0.5 to 0.25.




22. DiscoverSim references to cells are dynamic, so this change will take effect on the next simulation run, but the input comment will need to be refreshed manually. Click on cell I19 (Input X5_Dist). Select Input Distribution. Click OK.  Review the revised input comment in cell I19:

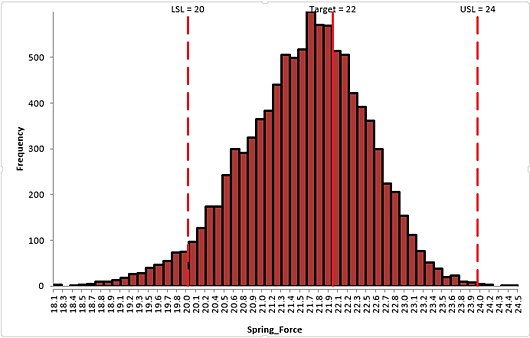

23. Rerun the simulation without sensitivity charts:

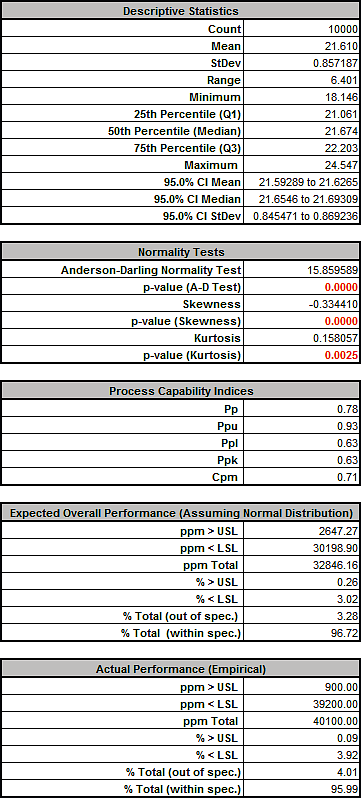

    Tightening the tolerance of X5, Initial Compression resulted in an improvement with the Spring Force standard deviation reduced from 1.24 to 0.86, actual percent out of specification from 12.5 to 4.0% and Ppk increased from .43 to .63. However a Six Sigma design should have a minimum Ppk value of 1.5.

    At this point one could use Excel’s Solver to further improve the process by finding the nominal values that center the mean, but that still would not achieve the desired quality level.

    DiscoverSim’s Stochastic Global Optimization will not only find the optimum X settings that result in the best mean spring force value, it will also look for a solution that will reduce the standard deviation. Stochastic optimization looks for a minimum or maximum that is robust to variation in X, thus reducing the transmitted variation in Y. This is referred to as “Robust Parameter Design” in Design For Six Sigma (DFSS).


24. In order to run optimization, we will need to add Input Controls (also known as Decision Variables). Select Sheet1. The Input Control parameters are given in the table:



    The controls will vary the nominal X values in H15 to H22. The nominal values are added to the random input distribution (J15 to J22) as discussed above in Step 1.

    Constraints will also be added as shown so that there can be no overlap due to tolerance. For example if X2, Height, was at the low end of its tolerance and X1, Lip Height, was at the high end of its tolerance, it is possible that an overlap would leave no place for the spring to be seated.


25. Click on cell H15. Select Control:




26. Click input Name cell reference and specify cell P15 containing the input control name “X1_Control”.


27. Click the Min value cell reference and specify cell Q15 containing the minimum optimization boundary value = 2.


28. Click the Max value cell reference and specify cell R15 containing the maximum optimization boundary value = 5:




29. Click OK. Hover the cursor on cell H15 to view the comment displaying the input control settings:




30. Click on cell H15. Click the DiscoverSim Copy Cell menu button (Do not use Excel’s Copy – it will not work!).


31. Select cells H16:H22. Click the DiscoverSim Paste Cell menu button (Do not use Excel’s Paste – it will not work!).


32. Review the input control comments in cells H16 to H22.


33. Now we will add the Constraints. Click on cell U16. Select Constraint:




34. Type X2_Control – X1_Control in the “Left Hand Side” (LHS). Select “Greater Than >”. Enter 0.2 in the “Right Hand Side” (RHS).




35. Click OK. Review the comment at cell U16.



    The cell display is “TRUE” since the initial value for X2_Control (5) is greater than the initial value for X1_Control (3).


36. Repeat steps 33 and 35 with constraints at cells U18 and U22 as shown:






37. The completed model is shown below:




38. Now we are ready to perform the optimization. Select DiscoverSim > Run Optimization:




39. Select “Maximize” for Optimization Goal, “Weighted Sum” for Multiple Output Metric and “Cpm” for Statistic. Select Seed Value and enter “12”, in order to replicate the optimization results given below. Set Replications to 1000 to reduce the optimization time. All other settings will be default as shown:



    Maximize Cpm is used here, rather than Ppk, because it incorporates a penalty for mean deviation from target. We want the spring force mean to be on target with minimal variation. Note, however, that this solution may not produce the lowest possible standard deviation.

    We will use the Hybrid optimization method which requires more time to compute, but is powerful to solve complex optimization problems.

    Tip: To speed up this optimization, change the maximum number of iterations in Hybrid Midaco 1 (first MIDACO run) from 1000 to 100. Click Advanced Settings. Select Midaco 1Maximum Iterations. Enter 100 as shown. Click OK.




40. Click Run.


41. Scroll through the optimization report window to view the various optimization methods. The initial method in Hybrid, DIRECT global optimization, found a solution that resulted in a very good Cpm value of 7.4:



42. The Genetic Algorithm uses the above optimal values as a starting point, but is unable to further improve on MIDACO’s Cpm value of 7.4.



43. The final method in this Hybrid, Sequential Quadratic Programming local optimization, uses the Genetic Algorithm optimal values as a starting point but is unable to further improve on the Cpm value of 7.4.




44. The constraint equations evaluated at this optimum are satisfied:



    Note: The constraint cell values in Excel will all appear as TRUE at the optimum.


45. You are prompted to paste the optimal values into the spreadsheet:



    Click Yes. This replaces the nominal input control values to the optimum values.


46. Select Run Simulation. Click Run.

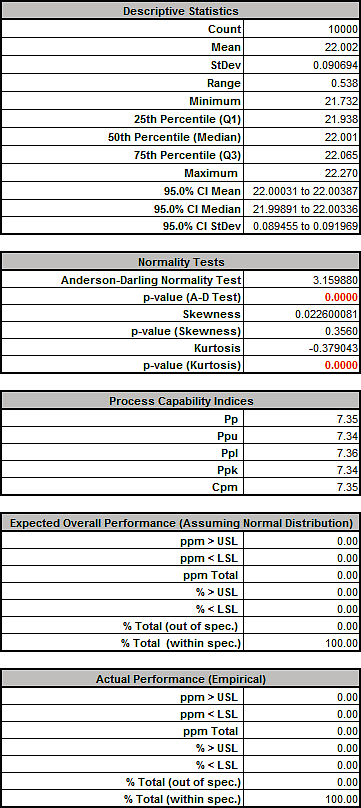

47. The resulting simulation report confirms the predicted dramatic improvement:





    The slight discrepancy in predicted Cpm (Optimization 7.4 versus Simulation 7.35 is due to the difference in number of replications for Optimization (1000) versus Simulation (10,000).


48. Recall the histogram for the initial simulation run:




49. In summary, DiscoverSim was used to dramatically improve the Spring Force performance as follows:


    1. Mean centered from 21.6 to 22.0
    2. Standard Deviation reduced from 1.24 to 0.09, more than a ten-fold reduction!
    3. Ppk increased from 0.43 to 7.23, Cpm increased from 0.51 to 7.35!
    4. Actual % Total (out of spec) reduced from 12.3% to 0%!


50. The benefits do not stop here. Since the design is now so robust, we can review the input tolerances to see if there is a cost saving opportunity by widening the feature tolerances, and re-running the simulation to study the impact.


51. Finally the results predicted here should be validated with physical prototypes before proceeding to finalize the design parameters. Remember “All models are wrong, some are useful!” George Box.
